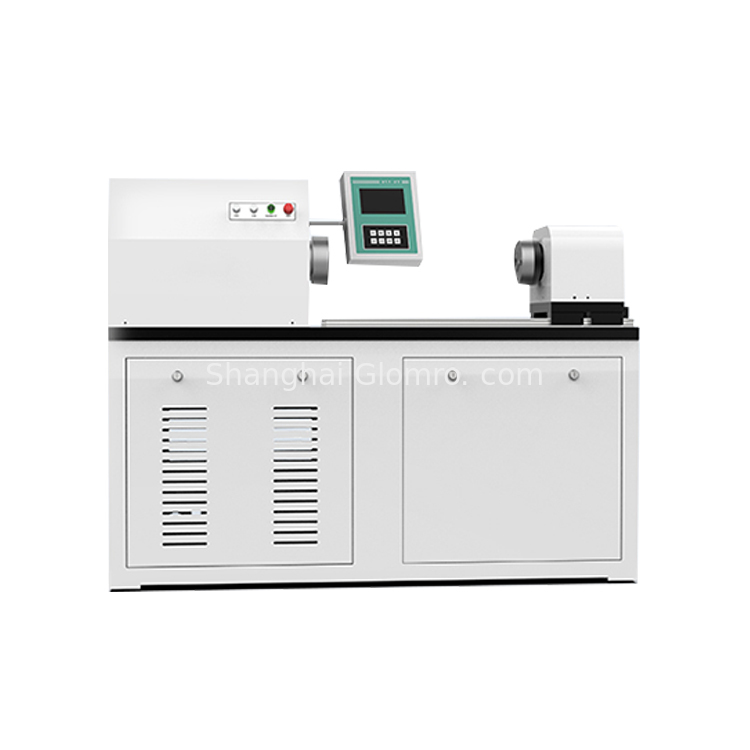

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment

اطلاعات پایه
محل منبع: چین
نام تجاری: BAXIT
شماره مدل: BXT-10W/BXT-20W/BXT-500W/BXT-1000W/BXT-2000W/BXT-5000W
مقدار حداقل تعداد سفارش: 1
قیمت: US $2445.0 - 10600.0 / Unit
جزئیات بسته بندی: جعبه کارتن/جعبه چوبی
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: ,L/C,D/A,D/P,T/T,Western Union,MoneyGram
قابلیت ارائه: 10000 عدد
اطلاعات تکمیلی
مدل: BXT-2000W حداکثر گشتاور: 2000N.M
محدوده اندازه گیری: 2 ٪ -500 ٪ NM خطای نسبی نشانه گشتاور آزمایش: سطح 1
خطای نشانگر نسبی تکرار گشتاور آزمایش: ≤±1٪ وضوح گشتاور: 1/500،000 از حداکثر گشتاور ، بدون درجه بندی
برجسته کردن:

5000Nm Screwdriver Torque Testing Machine,Computer Control Screwdriver Torque Testing Machine,Torsion Test Equipment

,

Computer Control Screwdriver Torque Testing Machine

,

Torsion Test Equipment


توضیحات محصول

Metal wire torsion testing machine


           The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 0

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 1

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 2

Digital display type torsion testing machine
Model BXT-10W BXT-20W BXT-500W BXT-1000W BXT-2000W BXT-5000W
Maximum torque 10N.M 20N.M 500N.M 1000N.M 2000N.M 5000N.M
Measurement range 2%-500%N.M
Relative Error of Test Torque Indication Level 1
Relative Indication Error of Test Torque Repeatability ≤±1%
Torque resolution 1/500,000 of the maximum torque, without grading
Moving Distance Between Chucks 400mm
Coaxiality Accuracy Between Two Fixtures Within a range of 1000mm≤∅0.2mm
Torsion angle measurement range 0~10000°
Relative error of the torsion angle measurement ±1%
Torsion angle resolution ±0.001°
Torsion angle accuracy 0.009°
Torsional speed 0.01 - 720°/min infinitely variable speed control
Relative error of torque reversal speed Within ±1.0% of the set value
Power supply 220V 50Hz AC
Torsion Direction Forward rotation  Reverse rotation

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 3

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 4

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 5

 Packing & Delivery

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 6

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
