Product introduction
Wide Range BNG Explosion Proof Hose from 1/2 inch to 4 inch (DN15-DN100)
Explosion Proof Flexible Metallic Hose with Rubber Cover for Cable Protection
| Model |
External Thread Diameter |
Internal Thread Diameter |
Cable Outer Diameter |
Series |
Material |
Explosion-proof Mark |
| BXT-DN15 |
≈20mm |
≈19mm |
Ф6-10mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN20 |
≈26mm |
≈24mm |
Ф9-14mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN25 |
≈33mm |
≈30mm |
Ф11-18mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN32 |
≈42mm |
≈39mm |
Ф14-25mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN40 |
≈48mm |
≈45mm |
Ф17-28mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN50 |
≈60mm |
≈56mm |
Ф25-38mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN70 |
≈75mm |
≈72mm |
Ф32-45mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
| BXT-DN80 |
≈88mm |
≈85mm |
Ф35-55mm |
BNG |
Carbon steel / rubber |
Exd IIGB |
Product details

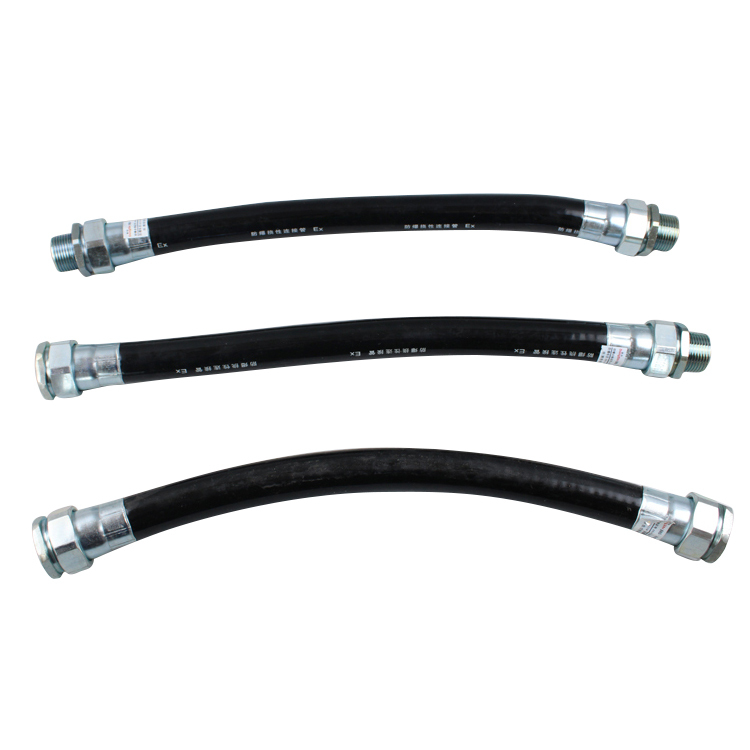

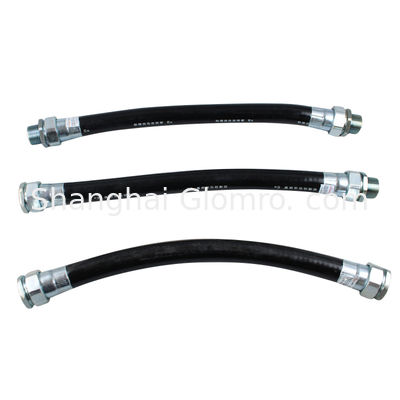

Product photos
The BNG series explosion-proof flexible connection pipe is a crucial safety connection component, specifically designed for connecting explosion-proof equipment with wiring steel pipes in hazardous locations with potential explosive gas environments. It can provide a sturdy, sealed and flexible connection in complex installation environments, effectively overcoming the stress caused by equipment displacement, vibration or angle deviation, while ensuring that the entire electrical circuit maintains a high level of explosion-proof safety and reliability.
Product application
1. Applicable to hazardous areas of Zone 1 and Zone 2;
2. Applicable to flammable dust environments in Zone 21 and Zone 22;
3. Applicable to explosive gas environments of categories IIA, IB, and IC, with temperature groups ranging from T1 to T6;
4. Applicable to hazardous areas such as chemical plants, oil refineries, petroleum extraction, medicine, military industry, and military facilities.
