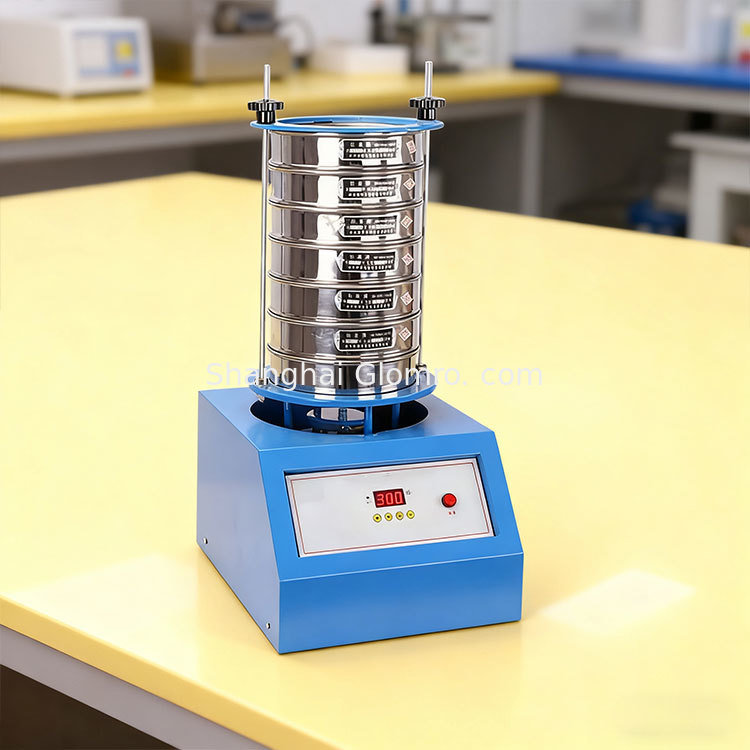

Standard Test Sieve Shaker
A screening machine is a specialized equipment that uses a sieve to conduct size classification and separation of solid materials. It is widely applied in fields such as mining, chemical industry, building materials, food, medicine, and laboratory analysis. Its core principle is to use power methods such as vibration, shaking, tapping, or ultrasonic waves to make materials of different sizes pass through corresponding aperture sieves, thereby achieving material classification screening, purity inspection, or particle analysis.
Main components
A screening machine is usually composed of a sieve frame (containing different-sized sieve screens), a driving system (providing vibration or shaking power), a control system (adjusting parameters such as frequency and time), and a base, etc. The material of the sieve screen can be selected from stainless steel, nylon, copper, etc., depending on the application scenario. The aperture size follows international or industry standards (such as ISO, ASTM, etc.), meeting the screening requirements for different particle size ranges.
Technical Specifications
| Model |
BXT-200A |
BXT-200B |
BXT-200C |
BXT-200SZJF |
BXT-200PZFJ |
| Display |
Digital display |
Digital display |
Screen display |
Digital display
Turn the knob to adjust the speed |
Dual Display Rotational Speed Display Function |
| Matching sieve frame |
∅200mm(Customizable) |
| Stacking layers |
7 layers(Separation screen is provided separately) |
| Single screening quantity |
≤200g |
| Timed |
Yes |
| Motor heat dissipation |
No |
Yes |
| Motor power |
180w |
200W |
| Motor speed |
1400rpm/min |
0-1400rpm/min |
| Power supply |
220V/50Hz |
| Regular sieve holes |
10-200 mesh |
| Machine weight |
25kg |
| Dimensions |
420*320*750mm |
Product structure
Comparison of mesh size and hole diameter
