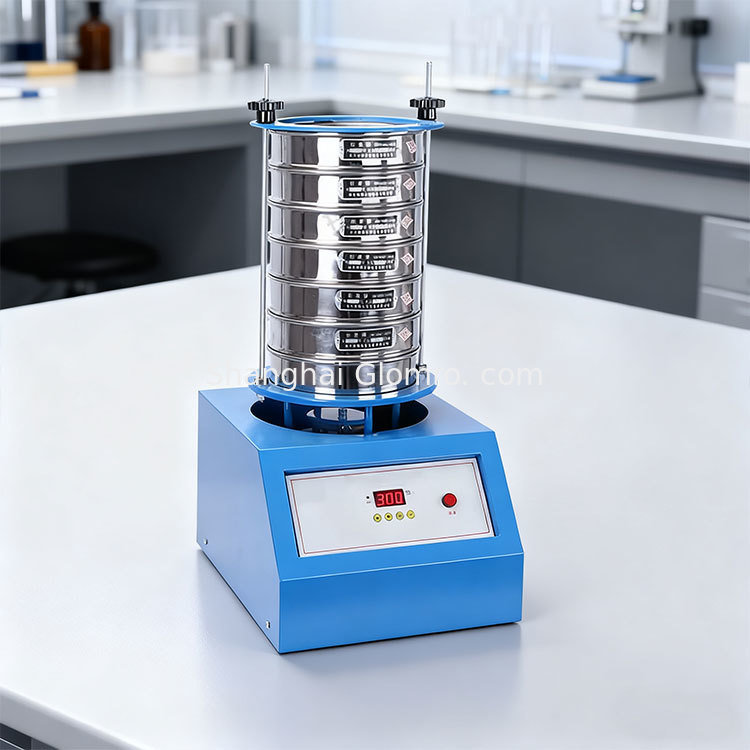

Standard Test Sieve Shaker
A screening machine is a specialized equipment that uses a sieve to conduct size classification and separation of solid materials. It is widely applied in fields such as mining, chemical industry, building materials, food, medicine, and laboratory analysis. Its core principle is to use power methods such as vibration, shaking, tapping, or ultrasonic waves to make materials of different sizes pass through corresponding aperture sieves, thereby achieving material classification screening, purity inspection, or particle analysis.
Core function
Material classification: Separate the mixed materials into different grades based on particle size;
Purity screening: Remove impurities or substandard particles from the materials;
Particle size detection: Combined with standard sieve nets, precisely analyze the particle size distribution of the materials to provide data support for production quality control.
Technical Specifications
| Model |
BXT-200A |
BXT-200B |
BXT-200C |
BXT-200SZJF |
BXT-200PZFJ |
| Display |
Digital display |
Digital display |
Screen display |
Digital display
Turn the knob to adjust the speed |
Dual Display Rotational Speed Display Function |
| Matching sieve frame |
∅200mm(Customizable) |
| Stacking layers |
7 layers(Separation screen is provided separately) |
| Single screening quantity |
≤200g |
| Timed |
Yes |
| Motor heat dissipation |
No |
Yes |
| Motor power |
180w |
200W |
| Motor speed |
1400rpm/min |
0-1400rpm/min |
| Power supply |
220V/50Hz |
| Regular sieve holes |
10-200 mesh |
| Machine weight |
25kg |
| Dimensions |
420*320*750mm |
Product structure
Comparison of mesh size and hole diameter
